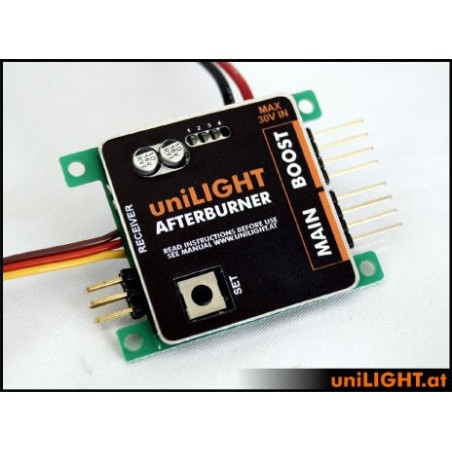

UniLIGHT - AFTERBURN-2-800-1 Module Afterburner

Our 2-Channel Afterburner Module is especially designed for very powerful afterburner rings and generates besides the typical "flickering" effects even more additional functions.
Like all uniLIGHT modules, the function selection is made via servo travel and via parts of it respectively. The receiver selects the performance and additionally, the speed of the effect can be selected on the button.

Functions for MAIN
This is the main channel for the afterburner ring. The contacts are provided twice and internal switched in parallel to carry the required current. Switch the contacts ALWAYS ONLY in parallel by connecting both cables of the ring homopolar. The main channel will then simulate the afterburner function. Therby, the first sector of the servo travel is characterised by a preheat (a slightly, steady glowing).

Functions for BOOST
The second channel can be used for another functional enhancement (boost) and is beeing patched in in the top sector of the servo travel. This means that a second afterburner ring can be patched in. In addition, a pump can be triggered to inject smoke or fluid.

Technical Data

Control side receiver 4.8-9.6V

Only about 10g without cable

Dimension: 50x35x8mm

Light signals 2x2 Channels with 8A to 30V

Total load up to 12A

galvanically isolated circuits

11 effects with variable speed
