UniLIGHT - 10mm PIN Navigation Light, T-Fuse 040x2 - RT

Slim navigation light with a thermal fuse

Slim LED high-performance light with 4W reference power and x2 chip technology for operation as a position/navigation light on a wide range of models. The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heat sink, and 5 high-strength polycarbonate caps are included for free use. The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down.

Technical Data:

Electrical: 4Wx2 reference power,
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~100 lumens RED
Light intensity: ~140 lumens GREEN
Light intensity: ~200 lumens WHITE
Dimensions mounting pin, D10x45mm, flange to cap D12mm
Dimensions of light cap: D10x12.5mm, flange to carrier D12mm
Overall dimensions: D10/12mm, 57.5mm length
Weight: 5g (without cable)

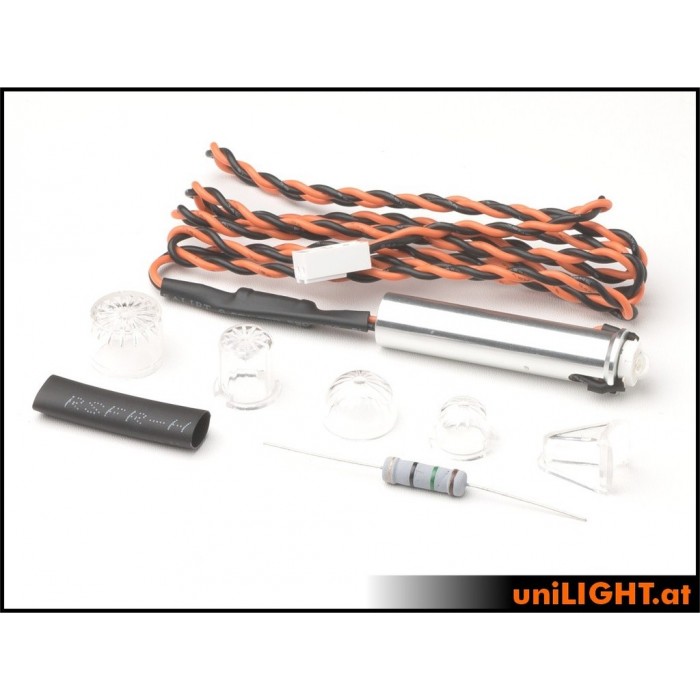

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S.
1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
1x 10mm profile extension
