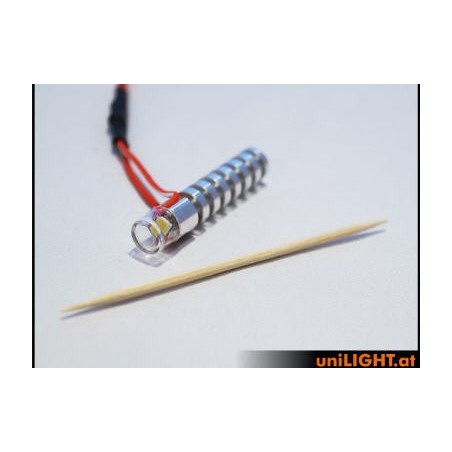

UniLIGHT - SLIM7-020x2-RT 2Wx2 Slim Navigation Light, 7mm

Miniature slim navigation light with very good power output because of the new COB chip x2-technology, small dimensions with ready mounted, transparent 7mm polycarbonate cap. Perfectly for small wingtips, rudder, helicopters,...

The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Please check operation temperatures after installation.

Technical Data

Electricity: 2Wx2 reference power, 8(12)V, 0.17A
Beam angle: >150°
Light intensity: ~50 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~110 Lumen WHITE
Dimension: D7x37mm
Weight: 3.5g (without cable)
Delivery: ready to use with 0.5m PTFE cable and ready made series resistor for 2S, resistor for 3S enclosed
