UniLIGHT - MINIX-035-NAVSET SET 3W Navigation, SHORT, 8mm

Set for the do-it-yourself construction of cost-effective and small navigation lights in a short version with slightly reduced performance. Ideal for smaller models but still great luminosity.

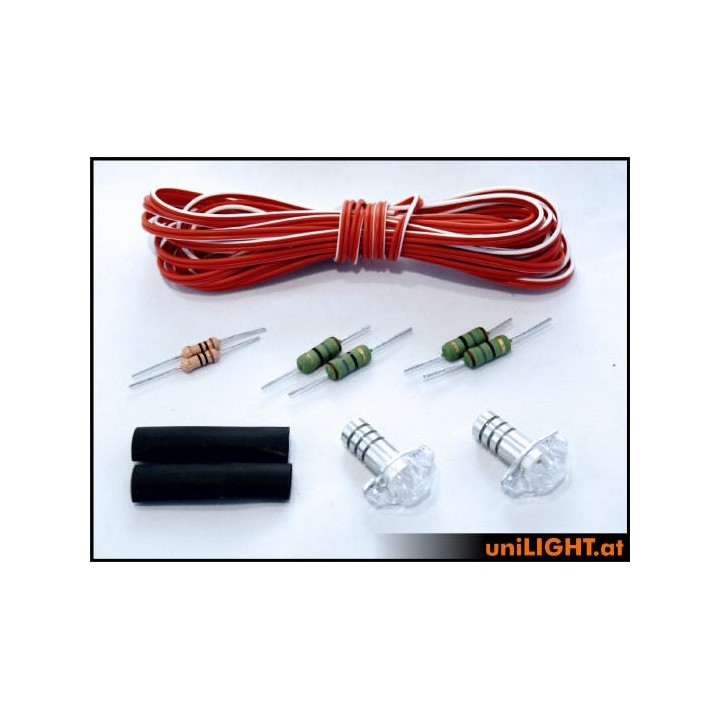

The set consists of two lights with heatsink and caps, a bunch of cables, resistors for operation with 6V, 8V(2S) and 12V(3S). The lights only have to be wired in the model.

Please also note that high-performance LEDs can get very hot, up to 70°C is quite normal. Please check operation temperatures after installation.

Technical Data

Electricity: 3.5W reference power, 8(12)V, 0.28A
Beam angle: >160°
Light intensity: RED ~40 Lumen, GREEN ~60 Lumen
Dimension cap: 8x18x9
Dimension cooler: D7x14
Weight: 5g (without cable)
Delivery: 2m cable, series resistor for 6V, 2S and 3S enclosed
