SAVOX - SB-2272MG Brushless High Voltage 2BB 7Kg 0,032sec/60° 7.4V, 66gr

Dati Tecnici - Technical Data

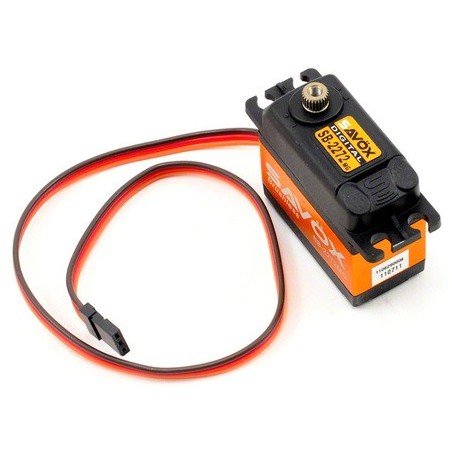

Savox SB-2272MG "Lightning Speed" Brushless Metal Gear Digital Servo (High Voltage)

This is the Savox SB-2272SG "Lightning Speed" Brushless, Metal Gear, High Voltage, Digital Servo.

Features:

Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
Super light-weight.
Brushless motor provides extremely high speed, incredible efficiency, and low power consumption.
Extremely strong metal gears ensure long-life and durability.
The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Totally green – from materials to production, these servos are environmentally friendly.
Ideal for 1/10 trucks and buggies, as well as every control surface for giant scale aircraft and 700 class heli rudder applications.

Specifications:

Dimensions: 40.3x20.2x38.7mm
Weight: 66g
Speed:
@ 4.8V: .05 sec/60
@ 6.0V: .045 sec/60
@ 7.4V: .032 sec/60
Torque:
@ 4.8V: 41.7 oz-in
@ 6.0V: 69.4 oz-in
@ 7.4V: 97.2 oz-in/7.0Kg
Gear: Metal
Bearing: 2BB
Case: Full Aluminum
Output Shaft: 25 Tooth Spline
