SAVOX - SC-1267SG + digital servo High Voltage Ultra Speed

Dati Tecnici - Technical Data

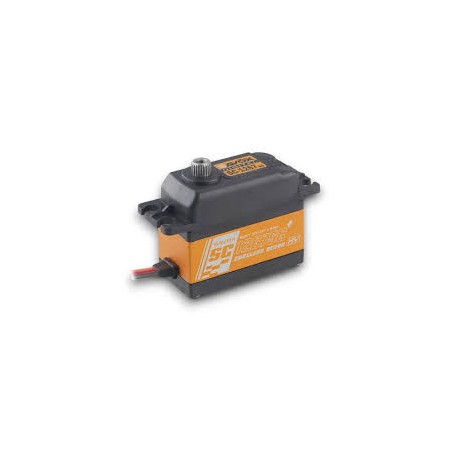

Savox SC-1267MG "Ultra Speed" Digital Steel Gear Servo (High Voltage)

This is the Savox SC-1267MG High Voltage Ultra Speed Digital Steel Gear Servo. Savox have now released their 'High Voltage' servo line that can be powered by a unregulated LiPo battery! These servos combine leading edge technology with super high 12 bit (4096) resolution. These high voltage servos also feature a redesigned motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength.

Features:

* No Regulator needed
* Higher performance due to increased voltage and improved technology
* Fast response
* Incredible torque
* Increased transit speed
* Increased efficiency
* Water resistant with 4 silicon seals implanted
* Strong and precise-made steel gears
* Suitable for 1/8th nitro racing and large scale aircraft
* Suitable for 600 and 700 class helicopter swash plate servos.

Specifications:

* Torque: @7.4v - 291 oz-in / 21 kg-cm
* Speed: @7.4v - 0.09sec/60°
* Voltage Range: 4.5v-7.4v
* Weight: 62g
* Motor: Coreless
* Gear: Steel
* Case: Aluminum Heatsink
* Output Shaft: 25T Spline (Futaba)
* Case Size (LxWxH): 40.3x20.2x37.2mm
