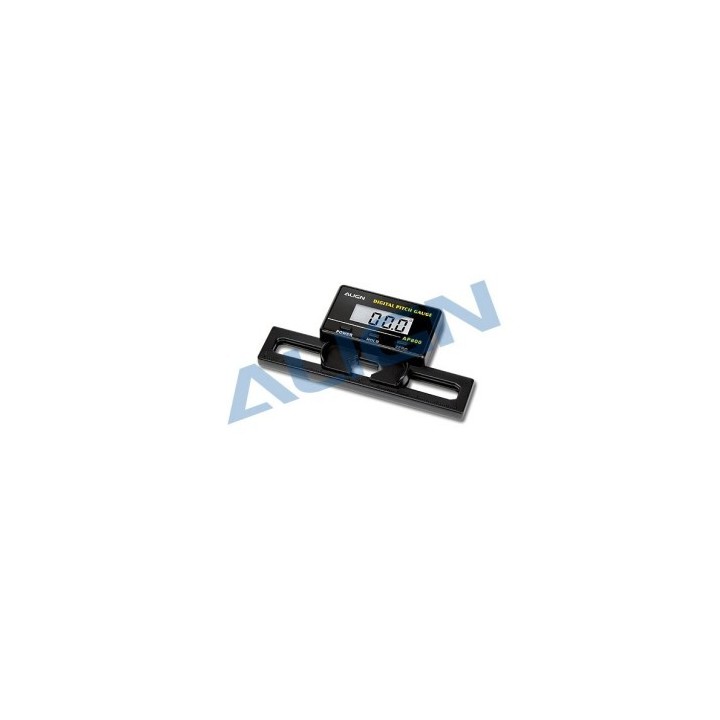

Align - AP800 Digital Pitch Gauge Misuratore di passo

HET80001 AP800 Digital Pitch Gauge.

Developed by the RD team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

Fatures:
- Auto-detecting Horizontal level.
- Uses backlighting LCD monitor.
- Zero and Lock function.
- Detectable pitch range: -90 - 90 degrees.
- Automatic screen rotation.
- Suitable for 200-800 mm main blades.
- Build-in energy saving function. Power shuts down after 3 mins without any movement.

Specification:
- Body Dimension: 108x53.9x16 mm
- Suitable blade width: 20 mm - 74 mm
- Detectable pitch range: +-90 degrees
- Resolution: 0.1 degrees
- Battery: 2x CR 2032 Lithium
- Weight: 38 g (including battery)
